Weima WL 4 S Single Shaft Shredder

Hopper Opening (mm) – 600 x 800
Rotor Diameter (mm) – 252
Rotor length (mm) – 600
Rotor Speed (rpm) – 70 – 100
Power (kW) – 22
Rotor Knives – 17

Video

Description

The WL 4 S single-shaft shredders have proven themselves to be the classic shredders for wood waste of all kinds, and can be found in thousands of woodworking shops all over the world. The global popularity of this shredder series assures high reliability at a competitive price to performance ratio. These machines set themselves apart from other machines of their size and type due to their robust construction, giving them a longer life cycle.

The shredded wood can be discharged into an air conveyor or onto a traditional conveyor. The profiled innovative “V” Rotor is made of solid material and mounted on stable rotor bearings. Special blade holders are welded into milled blade pockets around its circumference. The cutting knives are set into these and screwed on from the back. This ensures quick and easy blade changing.

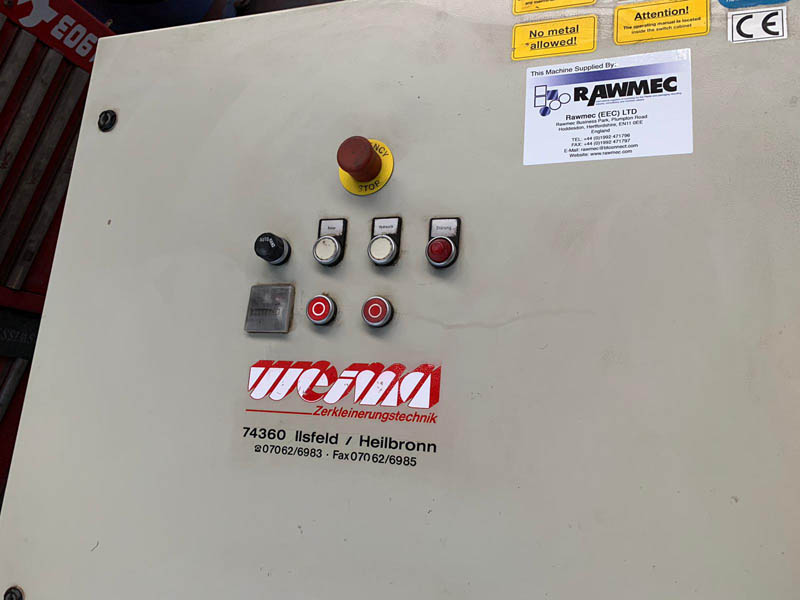

All Rawmec’s machines are taken through a 10 point safety inspection. All safety systems are replaced if missing. So safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

Features

  • Hopper Opening (mm) – 600 x 800
  • Rotor Diameter (mm) – 252
  • Rotor length (mm) – 600
  • Rotor Speed (rpm) – 70 – 100
  • Power (kW) – 22
  • Rotor Knives – 17
  • Weight (approx. kg) – 1300
  • Connection Diameter (mm) – 180
  • Screen Size (mm) 10 – 40

Applications

  • PLASTICS
  • RUBBER
  • WOOD
  • BIOMASS
  • PAPER
  • ALTERNATIVE FUELS (RDF/SRF)
  • DOMESTIC & COMMERCIAL WASTE
