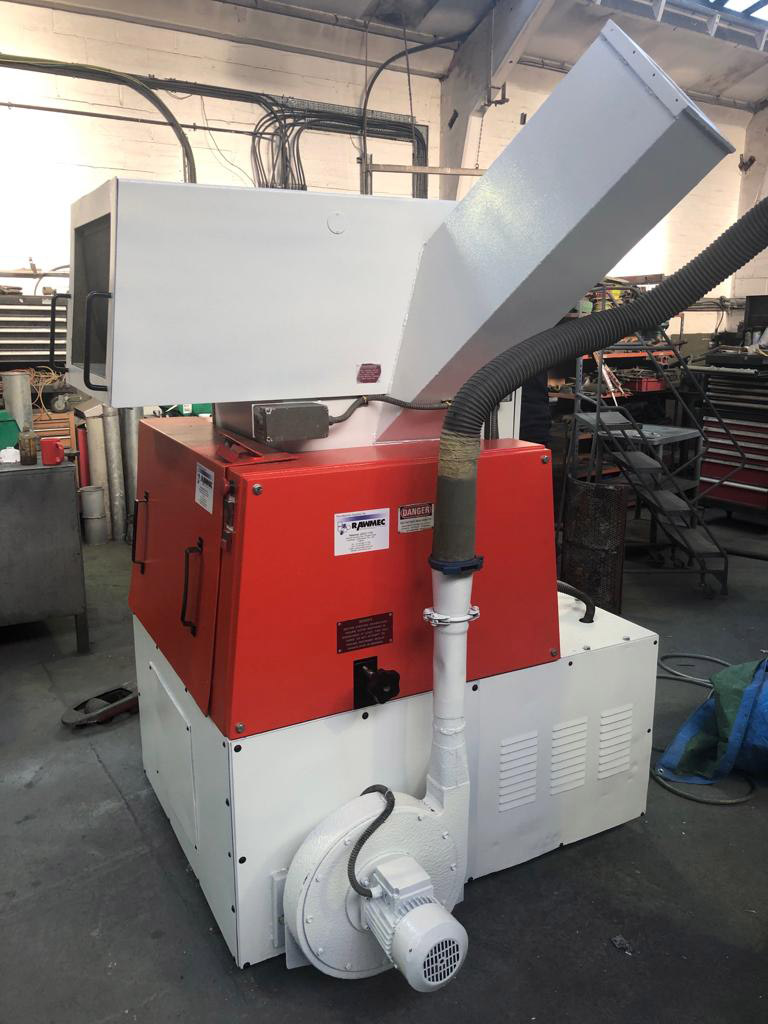

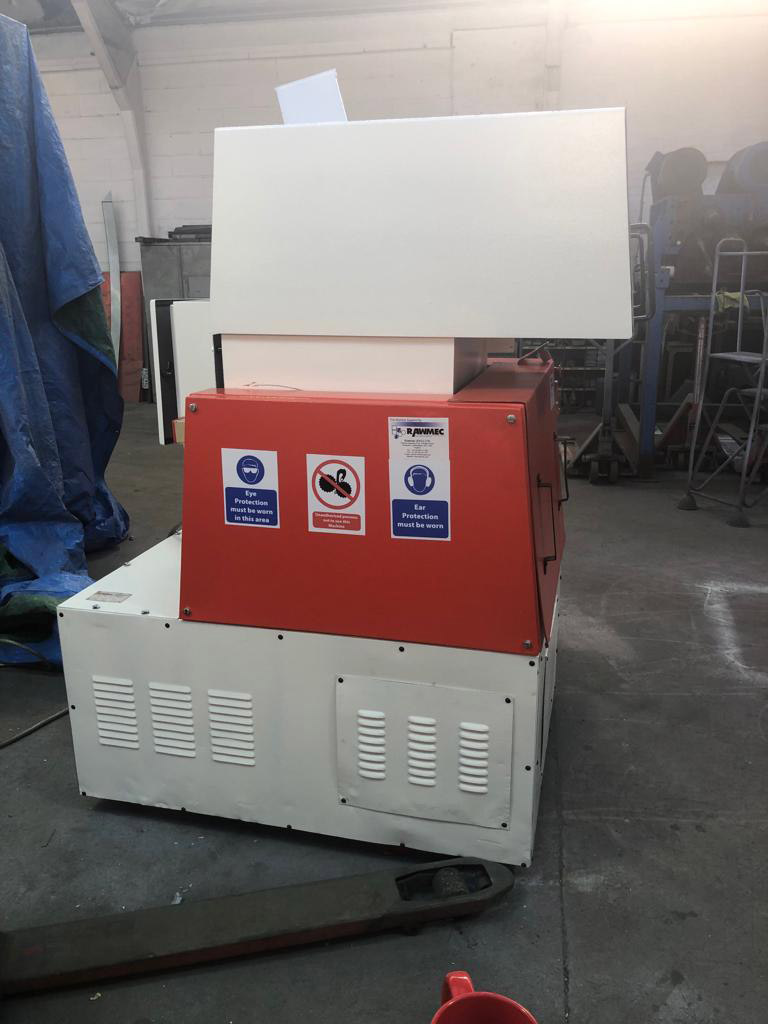

Cumberland 5-84 Granulator

Throat: 400x500mm
Drive: 15kw motor
Open Rotor
Rotor Blades: 3
Stator Blades: 2
Screen: 8mm
Blower
Ideal for waste plastic of all types

Description

The Cumberland 5-84 Granulator has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. 2 Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.

The rotor is a heavy duty paddle type design with 3 knife cover plates to protect the blades when processing abrasive applications. The 3 knifes mounting bolts are screwed into the mounting plates as opposed to the rotor. All knives are manufactured from chrome nickel tool steel as standard, but when processing applications that are particularly abrasive the Cumberland granulators can be fitted with a specially designed wear resistant rotor utilizing wear resistant steel parts and hardox facing.

The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives.

The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise. The 15Kw drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge. Specially designed hopper with front and side entrances for different shaped objects. Integrated rundown safety device prevents access to the rotor until it has come to a complete stop.

All Rawmec’s machines are taken through a 10 point safety inspection. All safety systems are replaced if missing. So safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

Features

  • Throat: 400x500mm
  • Drive: 15kw motor
  • Open Rotor
  • Rotor Blades: 3
  • Stator Blades: 2
  • Screen: 8mm
  • Sound Proofed
  • Blower
  • Ideal for waste plastic of all types

Applications

  • PLASTICS
  • RUBBER
  • WOOD
  • BIOMASS
  • PAPER
  • ALTERNATIVE FUELS (RDF/SRF)
  • DOMESTIC & COMMERCIAL WASTE
